Green Power Supplies Meet Efficiency Level V Requirements 12W

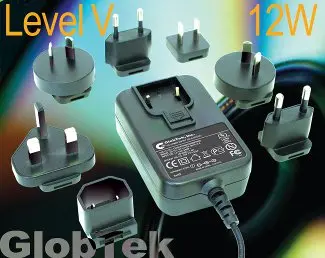

Wall Plug-in Power Supplies with Interchangeable Blades include North America, Europe, U.K., Australia, China, Korea Class II, S. Africa, Argentina, IEC Inlet available in single blade installation or sold as a kit. Double-Enforced Insulation Mechanical Configurations, Regulated Outputs voltage from: 5 to48Vdc in 0.1V increments, up to 12W of continuous output power. GlobTek’s GT-41135 series of enclosed power supplies are housed in Impact Resistant non-vented Polycarbonate Case, Thermal Conduction Cooling, Case Dimensions: 43.5 x 74 x 35.3 (mm).
This Family features: Regulated output with very low ripple, Built-in Protection features: O.C., S.C., O.V., Thermal, accepts Universal Input: 90-264Vac, meet UL /cUL & other International Safety Agency to IEC/EN60950 Requirements complies with EMI/RFI Regulations, EMC Directives/ CE and FCC Class B for ITE applications. All Models carry agencies’ logos and CE-Mark. Reports including CB are generated by independent Certified Laboratory. Modified and Custom Designs are Also Available. GlobTek now offers a 5-year warranty. Made in USA option available upon request.
|Input V Hz||100-240V~, 50-60 Hz|
|Output V Range||5-48|
|Agency certifications||GT-41135 Interchangeable|
comments powered by Disqus
ITE/Medical Power Supply
GTM41133-90VV-x.x-T2, Desktop/External, Regulated Switchmode AC-DC, Input Rating: 100-240V~, 50-60 Hz, IEC 60320/C8 AC Inlet connector, Class II, Non-Earth Ground (aka "Figure-8"), Output Rating: 90 Watts, 12-48V in 0.1V increments, Approvals: CB, CE, cETLus, cETLus 60601-1 3rd, China RoHS, Double Insulation, GOST-R, IP21, Level V, PSE, RoHS 2, S-Mark, Ukraine, VCCI, WEEE. High impact plastic, 94V0 polycarbonate, non-vented housing with LED to indicate “Power Out.”.
