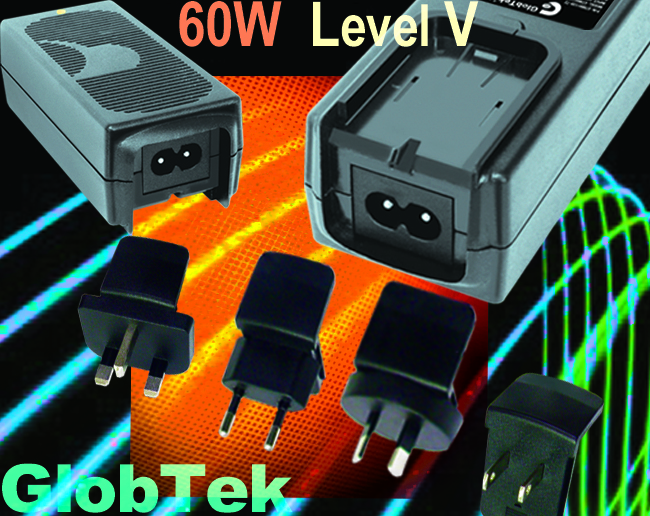

Green Power Supplies for Medical and ITE Applications meet Efficiency Level V Requirements 60W
Desktop Power Supplies with IEC 320/C8, C6 & Changeable Blades have Double-Enforced Insulation Mechanical Configurations, Regulated Outputs voltage from: 12-24 Vdc in 0.1V increments, up to 60W of continuous output power. GT(M)91099 series of enclosed power supplies are housed in Impact Resistant non-vented Polycarbonate Case, Thermal Conduction Cooling, Case Dimensions: 118.5x53.5x34.2 (LWH mm).
This Family features: Regulated output with very low ripple, Built-in Protection features: O.C., S.C., O.V., Thermal, accepts Universal Input: 90-264Vac, meet UL /cUL & other International Safety Agency to IEC/EN 60950 & 60601.1 for ITE & Medical applications; complies with EMI/RFI Regulations, EMC Directives/ CE and FCC Class B for ITE applications. All Models multiple international safety agencies’ logos and are CE-Mark. Reports including CB are generated by independent Certified Laboratory. Modified and Custom Designs are Also Available. GlobTek now offers a 5-year warranty. Made in USA option available upon request.
|Input V Hz||90-264 VAC, 47-63 Hz|
|Output V Range||12-24|
|Number of outputs||1|
