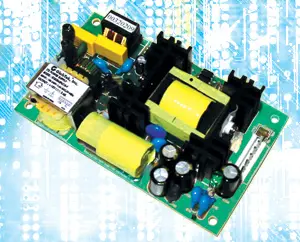

Power Supplies for Medical and ITE Applications Open-Frame 3x5 80 Watt
80W of continuous output power with 10CFM of airflow and GT(M)2065 series delivers 65W of continuous output power with free air convection cooling. Design has output voltages ranging from: 3.3V to 48V in 0.1V increment, single-platform design, industry standard, with Input Current-Shaper. GlobTek’s GT(M)2080 series delivers high efficiency, 85% typ., family of Open-Frame/ PCB Mount Style power supplies, has integral multi-fold heat sinks natural convection cooling, and In/Out Headers with Locking Ramp Connector for Open-Frame Configurations (non-locking headers for PCB Mount); accepts Universal Input: 90-264 Vac, features regulated output with low ripple, has Class B EMI Filter and P.F.C Correction; also Built-in Protection features: O.C./S.C., O.V., O.T. Packaged in an industry standard 3.0 x 5.0 x 1.3 (in), the series is ideal for 1U applications. Certified or designed to meet International Safety Agencies for use with Medical UL/EN 60601.1 or Information Technology UL/EN 60950 Equipment applications. The series meets Conducted and Radiated EMI Class B and complies with the immunity requirements under EN61000 series of standards. It is available in open frame, open frame with wire harness, open base plate of any size and L-Bracket with perforated top cover. Priced at (call) in OEM quantities. Made in USA option available upon request.
|Input V Hz||100-240V~, 50-60 Hz|
|Output V Range||3.3-48|
