BL3350C186501S1P****** (JHY) Battery Cylindrical Can Datasheet

Download PDF
BL3350C186501S1P****** (JHY)
BL3350C186501S1P****** (JHY), , Battery Cylindrical Can, Battery Li-Ion, , Input Rating: , , Output Rating: Watts, Power rating with convection cooling (W) , V in 0.1V increments, Approvals:BL3350C186501S1P****** (JHY), , Battery Cylindrical Can, Battery Li-Ion, , Input Rating: , , Output Rating: Watts, Power rating with convection cooling (W) , V in 0.1V increments, Approvals:
Information
Guidelines and cautions, Safety Notes, and Safety Precautions published on GlobTek’s website
Model NumberBL3350C186501S1P****** (JHY)
Agency Documentshttp://www.globtek.info/certs/BL3500C1865001S1PCMK/
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEContact GlobTek for more information
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEContact GlobTek for more information
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://globtek.secure.force.com/models/Morocco_SDoC_Declaration?id=a0O3a00000OA6XEEA1
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O3a00000OA6XEEA1
Prop 65 Statementhttps://en.globtek.com/prop-65-statement.pdf
REACH Declarationhttps://www.globtek.com/pdf/iso_certificates/REACH.pdf
Conflict Minerals Declarationhttps://www.globtek.com/pdf/conflict-minerals.pdf
Model Parameters
TypeBattery Cylindrical Can
TechnologyBattery Li-Ion
ChemistryLi-Ion
Cell Rated Capacity (mAh)3350
Cell Nominal Voltage3.6
Cell GeometryCylindrical
Cell Length
Cell Width
Cell Height
Cell Diameter
Enclosure
ModelImageMechanical DrawingType

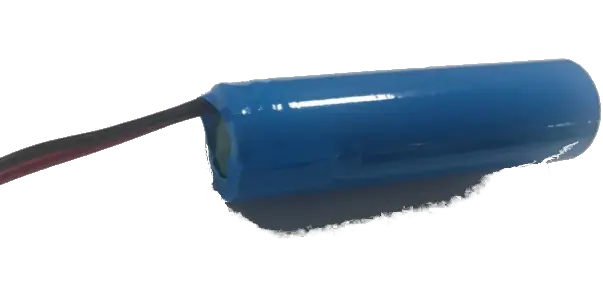

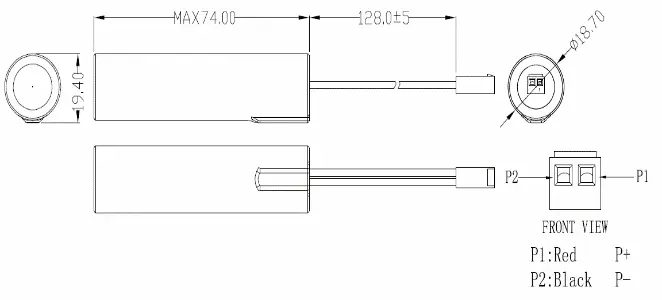

BL3500C1865001S1PCMK1S1P 18650 CELL + WIRES + MOLEX CONNECTOR

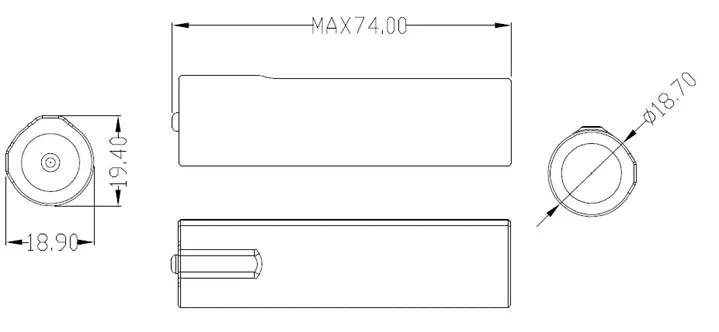

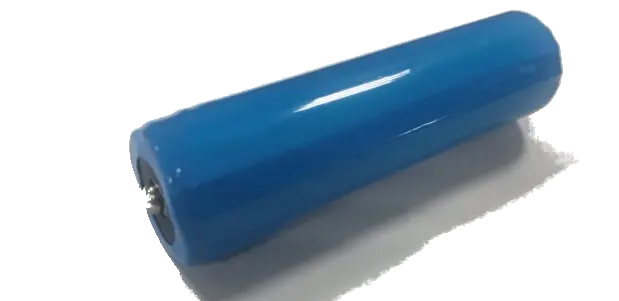

BL3500C1865001S1PCMK***1S1P 18650 CELL + Button top and contact

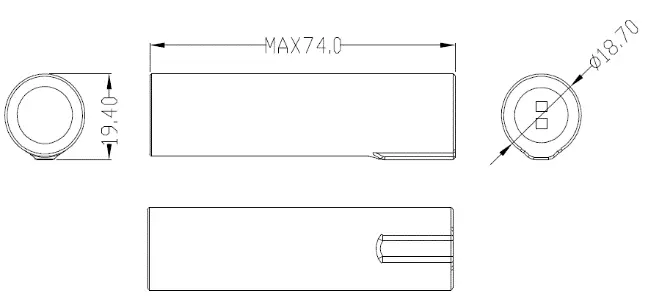

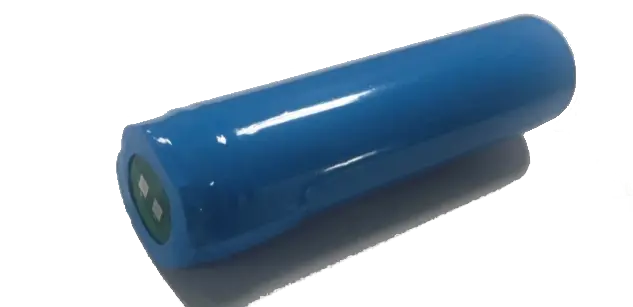

BL3500C1865001S1P*S****1S1P 18650 CELL + Solder tab

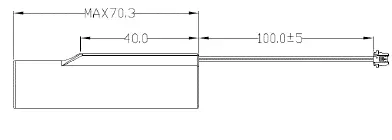

BL3500C1865001S1P*C****1S1P 18650 CELL + WIRES AND CUSTOMER SPECIFIC CONNECTOR

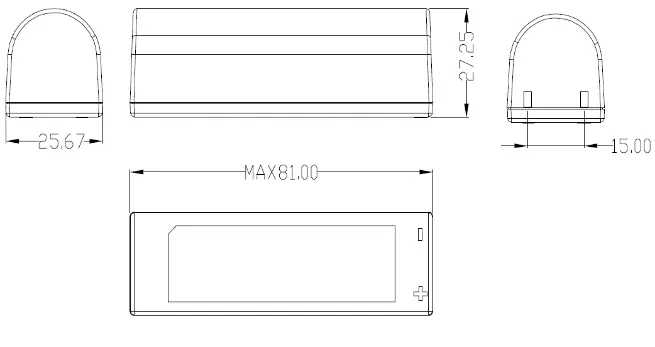

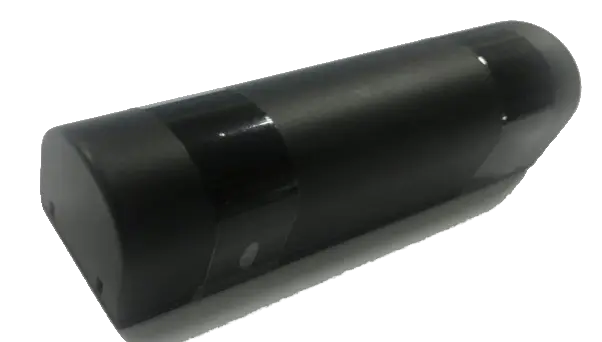

BL3500C1865001S1P*P****1S1P 18650 CELL + Plastic enclosure (may be customized)

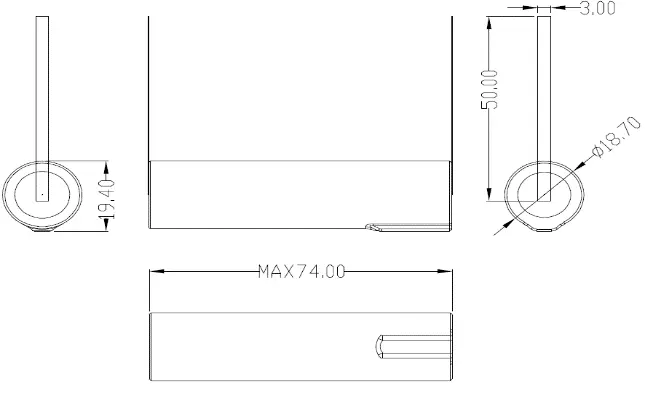

BL3500C1865001S1P*WN***1S1P 18650 CELL + 2 welded insulated tabs
Rating Table
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
BL3350C186501S1PCAT*
* (Final ordering #/Part No to be defined)
Specifications
GENERAL SPECIFICATION:
CELL:18650
PCM:Globtek Standard
NTC:N/A
ID:N/A
CONFIGURATION:1S1P
Weight:Appox. 50.5g
2.ELECTRICAL SPECIFICATION FOR PACK:
RATED CAPACITY:Typical capacity 3350 mAh
Minimum capacity 3200mAh
NOMINAL VOLTAGE:3.6V
WATT-HOUR RATING:12.06WH
CHARGING METHOD:CONSTANT CURRENT + CONSTANT VOLTAGE
MAX. CHARGE VOLTAGE [V]:4.2V
CHARGE CURRENT:0.2C
RECOMMENDED CHARGE CUT OFF:N/A
MAX. CONTINUOUS DISCHARGE CURRENT:10.0A
RECOMMENDED DISCHARGE CUT OFF:2.5V
INTERNAL IMPEDANCE:≤90mΩ


CELL PROTECTION:
OVER CHARGE DETECTION:4.25 ±0.025V/Cell
(MAX:1.3s. delay, resume4.075±0.05V)
OVER DISCHARGE DETECTION:2.5±0.05V
(MAX:166.4ms. delay, resume remove load & charging current)
OVER CURRENT DETECTION:20～40.0A
3. AMBIENT CONDITIONS
TEMPERATURE RANGE:

CHARGE:0 TO +45°C
DISCHARGE:-20 TO +60°C
CHARGE RETENTION/STORAGE [%]:1 YEAR AT -10 TO +25°C >80%
3 MONTHS AT -10 TO +45°C >80%
1 MONTH AT -10 To +55°C >80%

 		60 ±25%RH


HUMIDITY:60±25%RH
4.ENVIORMENTAL AND SAFETYPLEASE FOLLOW GlobTek, Inc. HANDLING AND SAFETY PRECAUTIONS FOR LiIon & LiPolymer.
https://en.globtek.com/safety-documents/battery-pack-safety-guidelines-cautions#.UUD-NRzU_l8


6. CELL REGULATORY APPROVALS:CELL APPROVED TO UL 1642
7. BATTERY PACK APPROVALS:
RoHS:COMPLIES WITH EU 2002/95/EC AND CHINA SJ/T 11363-2006
CE Mark:COMPLIES WITH 2004/108/EC ELECTROMAGNETIC COMPATIBILITY INCLUDING BUT NOT LIMITED TO EN61000-6-1:2007, EN61000-6-3:2007
TRANSPORTATION:Pack approved to UN38.3
Safety:
Designed to meet UL2054; IEC 62281
Cell designation: IEC 61960
Derating Curve
Qty (ea.)/Carton
Individual Box/Gift Box Size (mm)
Individual Box/Gift Box ColorWhite
Master Carton Size (mm)TBD
Gross Weight (kg)
Label Width (mm)
Label Height (mm)
Input Configuration
Description
Popular Products (Stock items)
SKUVolts OutCurrent Out (Amps)ConnectorRFQSample Request
27659980.00.0

Guidelines and cautions, Safety Notes, and Safety Precautions published on GlobTek’s website

http://en.globtek.com/safety-cautions.php

The purchaser of GlobTek battery pack products (Customer) agrees that they are a "Sophisticated user" who understands battery technology and that it is their sole responsibility to determine suitability of the product described for their application and to take precautions for protection against any hazards attendant to the handling and use of the product. GlobTek products are only designed for professional use and integration by companies into their products and may not be used by consumers directly. GlobTek provides batteries and battery packs as a component of an end system.

The acceptance of GlobTek specifications, the information on this page and use of the product(s) described in this or other GlobTek documents indicate that the product was qualified for use (tested and/or sample waiver signed), and the acceptance and binding of the customer to GlobTek terms and conditions, which supersede all other agreements, terms and conditions http://en.globtek.com/terms-and-conditions/

Lithium Ion batteries are inherently dangerous. Continuous usage or charging without allowing the battery to discharge is a hazard.

FIRE HAZARD: This like all Li-Ion battery packs must be regularly discharged and charged. it is not recommended to be kept on permanent fullcharge and in a full state of charge.
